Description
Features :
Mini 2.0MP WIFi NVR System;
Wifi Router Connection(Mini Gateway Nvr).
Support 128GB Micro SD Card.
Support up to 4PCs WIFI IP Cameras
PIR Motion Detection IP WIFI Camera
Support IP WIFI PIR Cameras, IP Camera .
IR Cut, IP66 Waterproof.
Application Environment :
No need cables ,easy to install .But Request Good wifi signal. So it is suitable for some places like Villas ,offices ,Stores etc

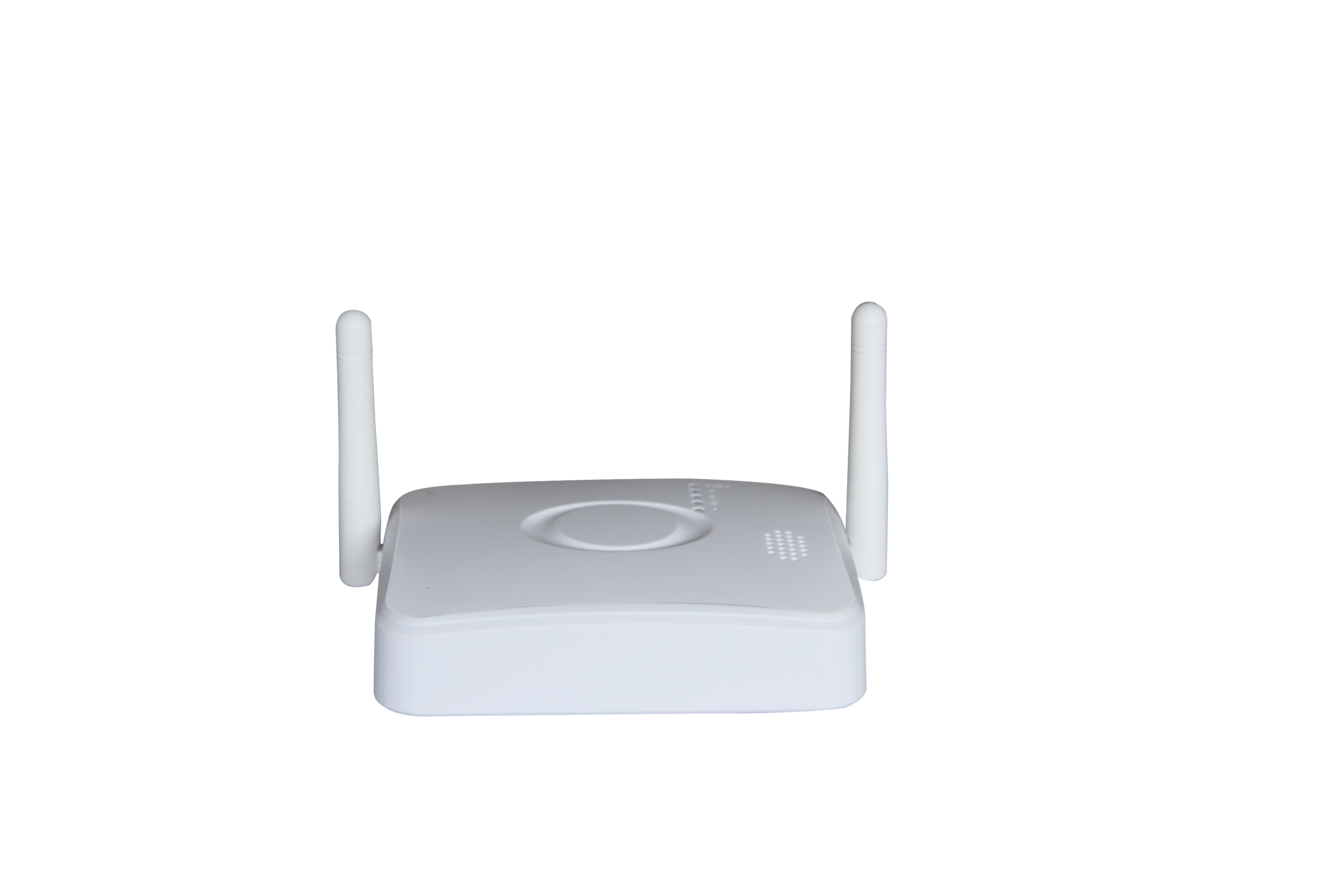

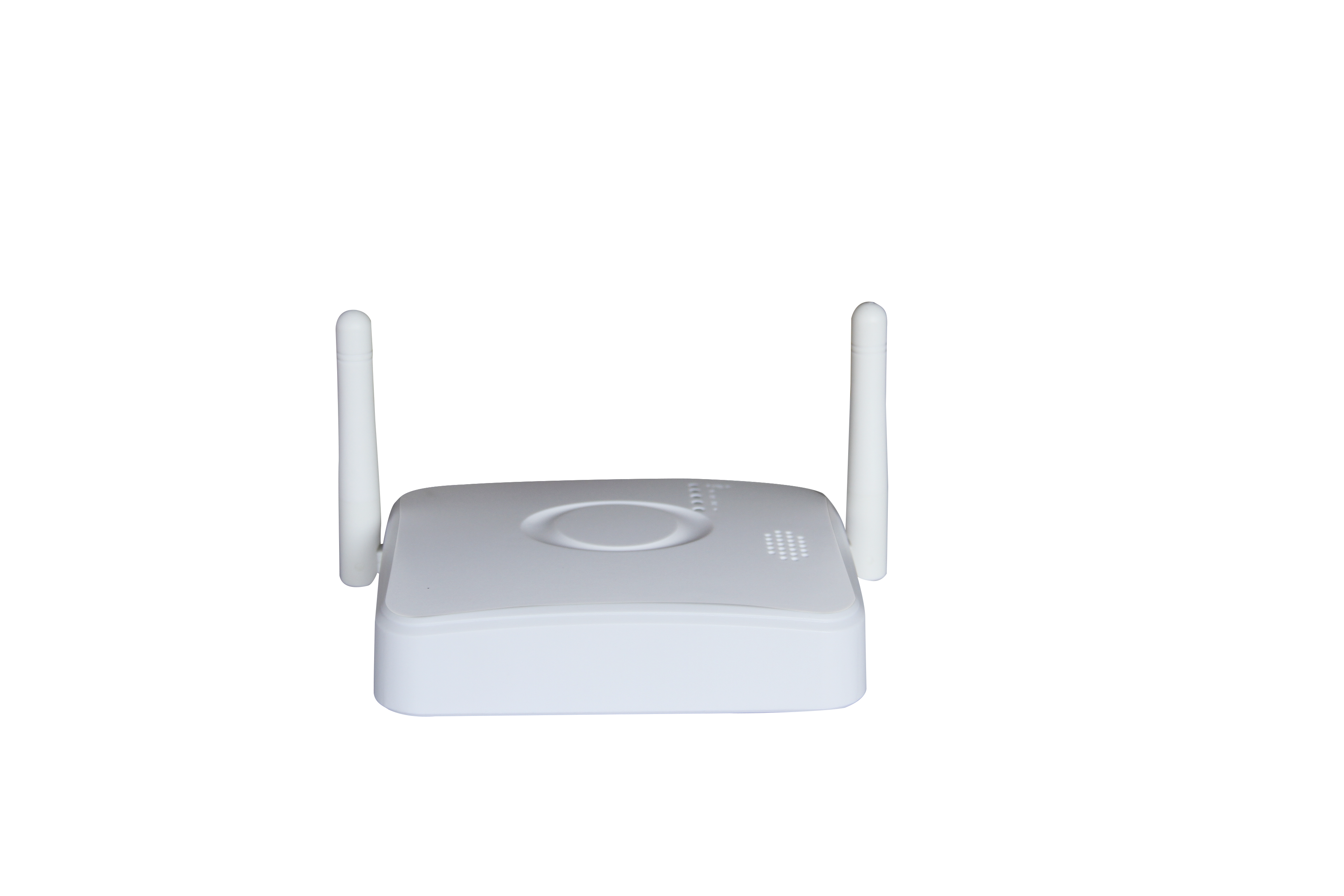

WIFI-NVR Parameters :
Video Input | Video input | 2/4 CH Option |
Video Output | Video Output | Connect the Router |
Viewing Mode | Mobile APP,PC CMS | |
Video Compression Mode | H.264 Main Profile | |
Video Decoding/Coding | Resolution | 720P/960P/1080P |
Playback | 1 CH(APP) | |
Record | Record | Motion Detection,Auto-Cover Record |
Backup | USB Storage,APP Playback Recording Backup | |

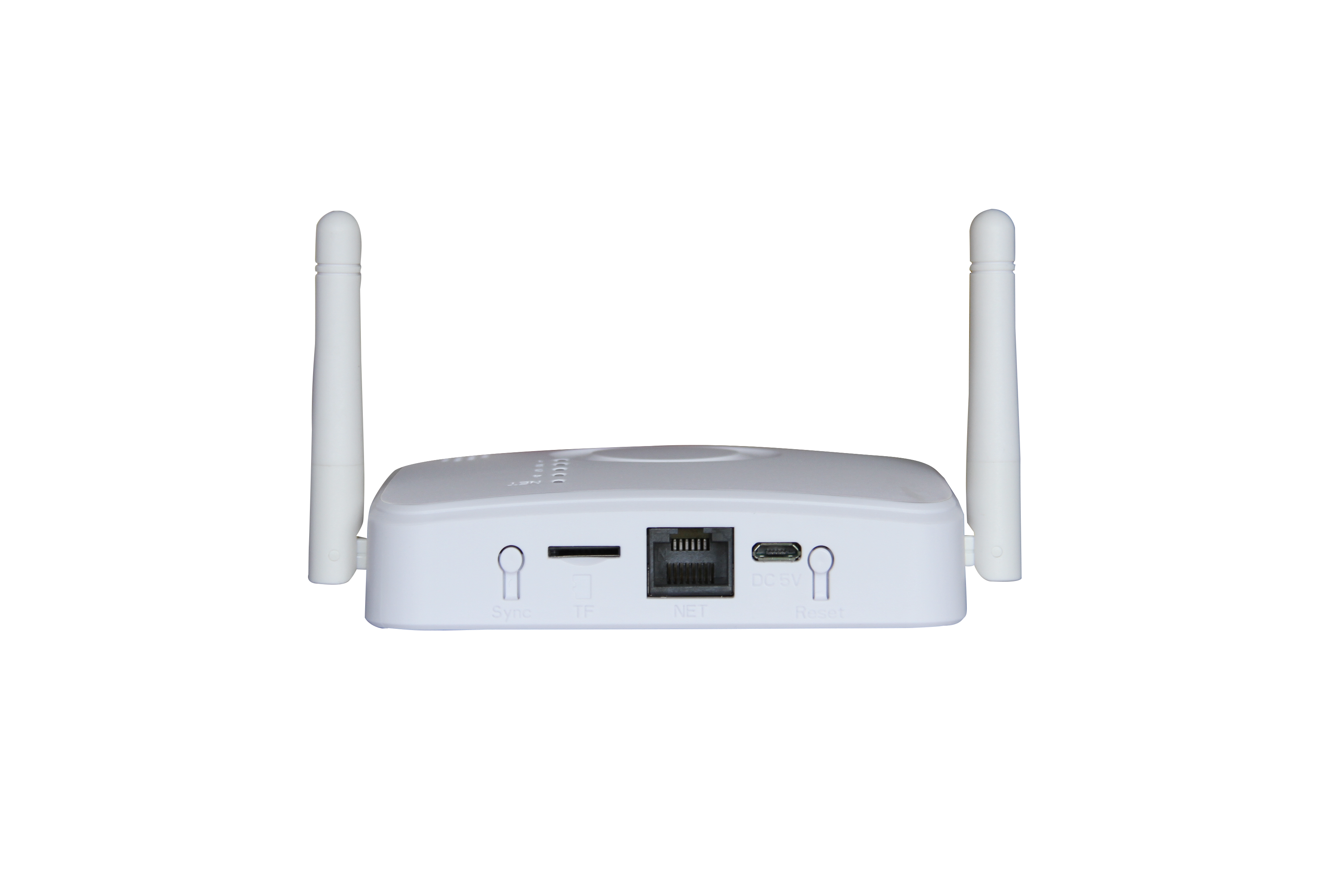

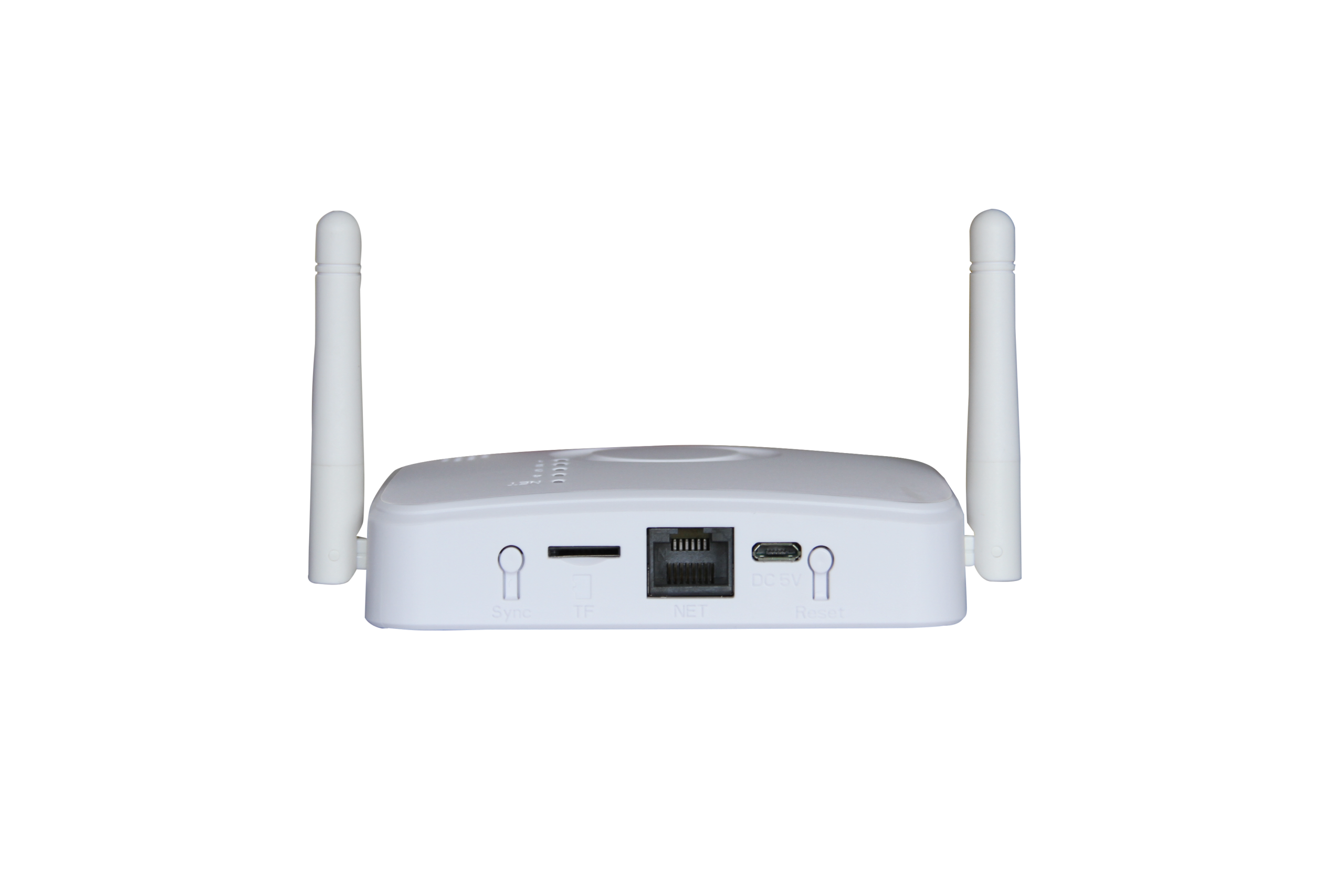

Store | Interface | 1*Micro SD Port |
Max Storage | 128G | |
Interface | Internet Port | 1*RJ45 10M/100M Ethernet |
2*WIFI Antenna | ||
Keypad Port | 2*Keypad,one Match button,Another Reset Button | |
Indicate Led | Indicator Light | 1 |
Channel Light | 4 | |
Others | Power Supply | USB DC 5V 1A |
Temperature | -10℃–+55℃ | |
Humidity | 10%–90% | |
Size | 80x80x27mm | |
Weight | 80g |

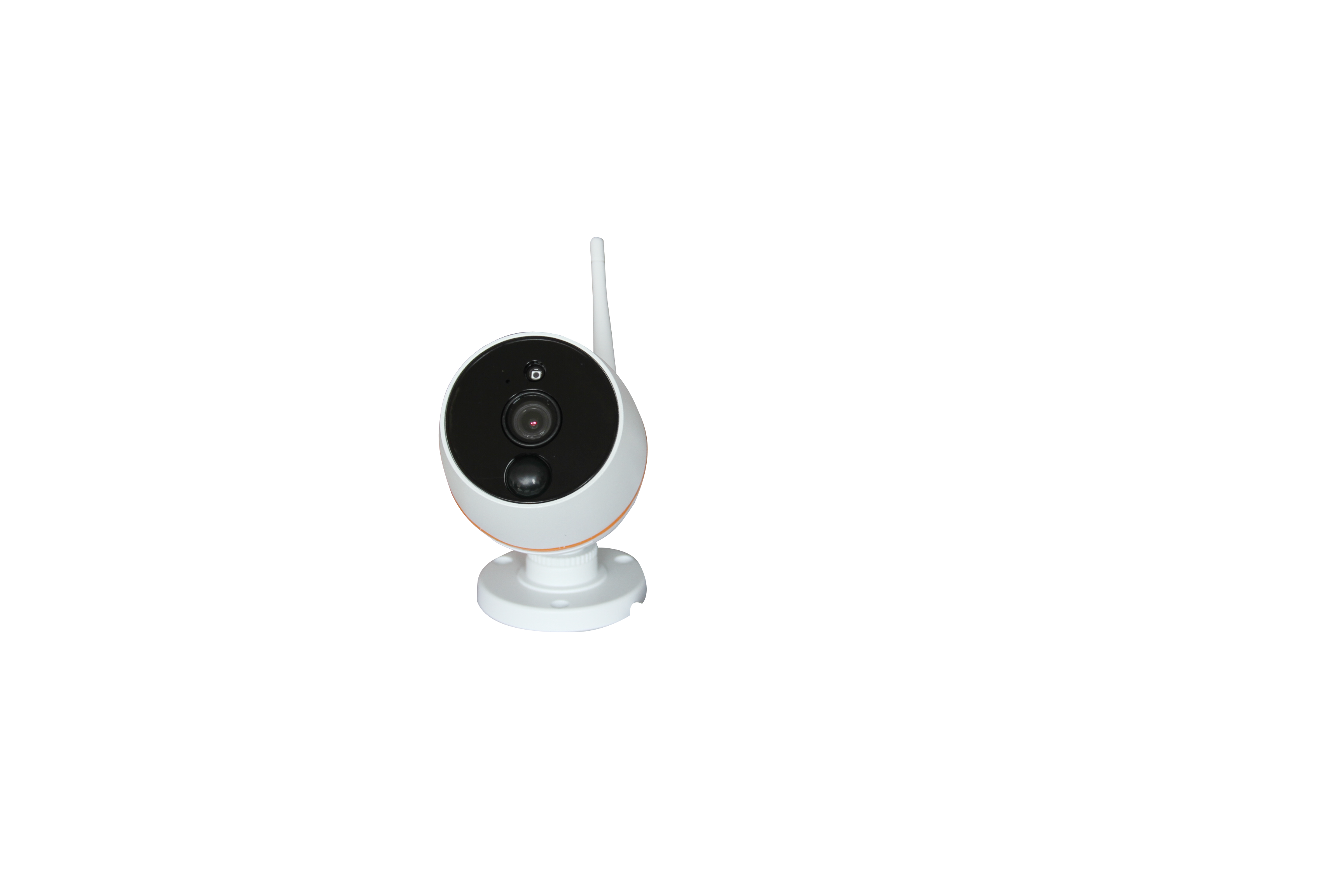

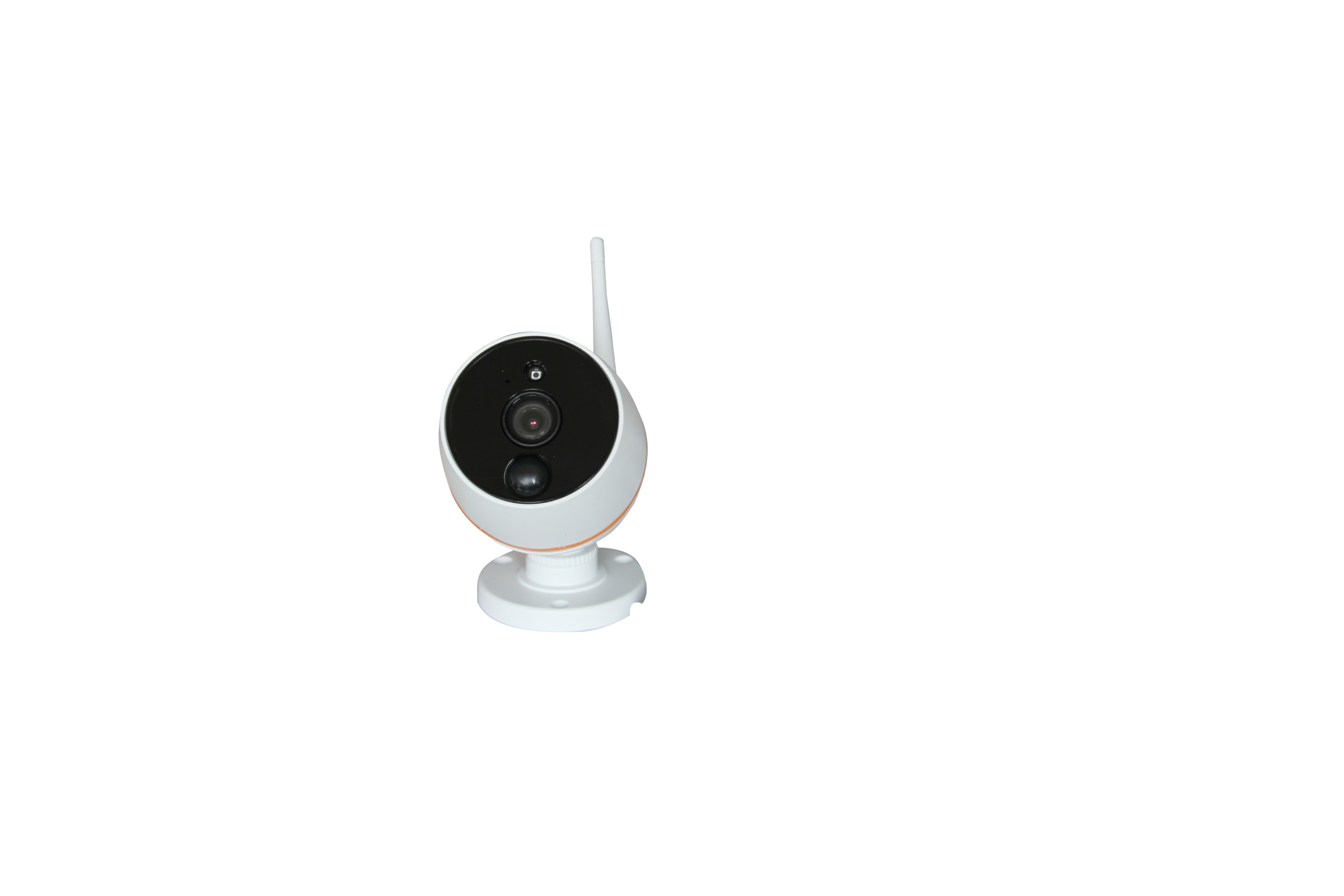

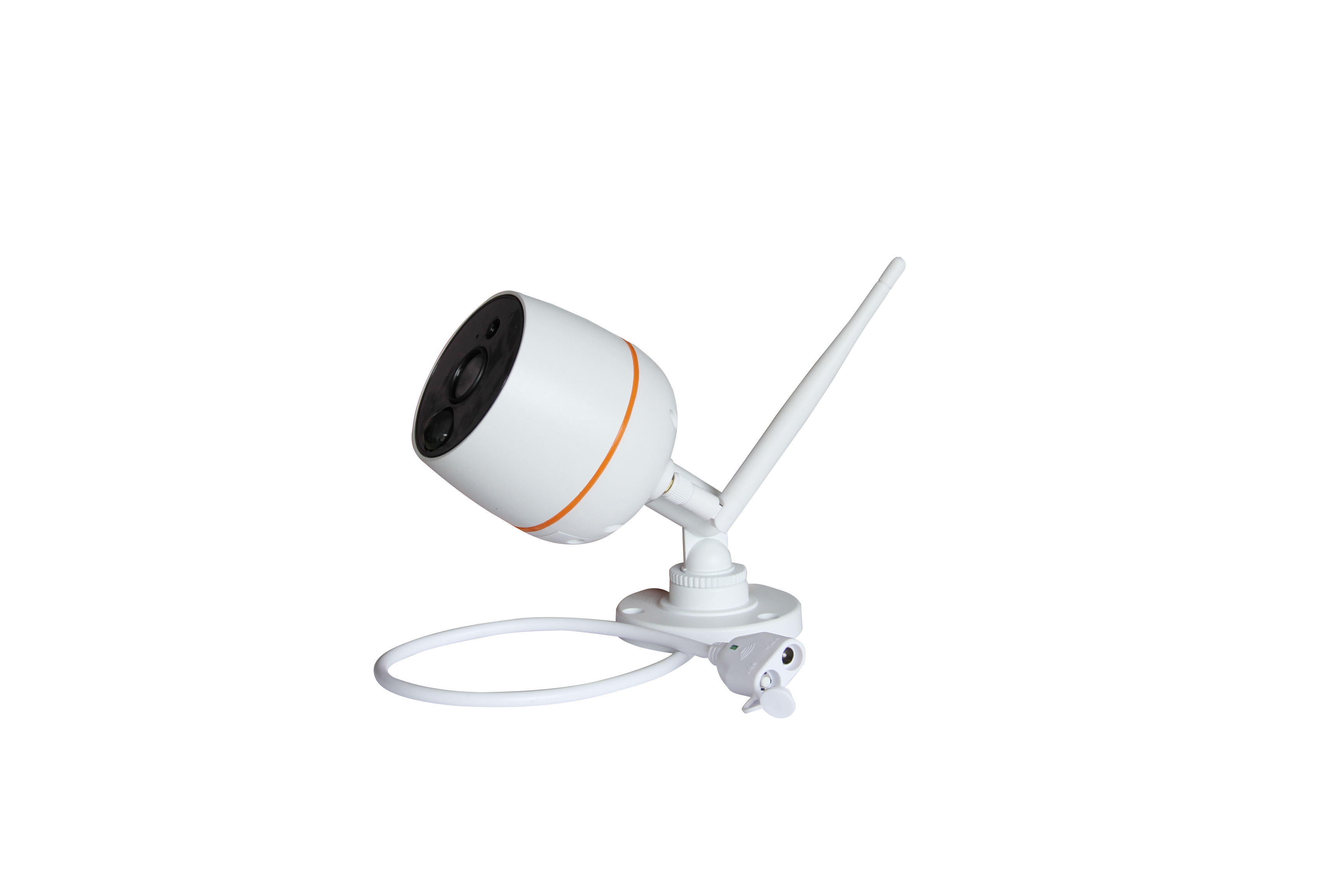

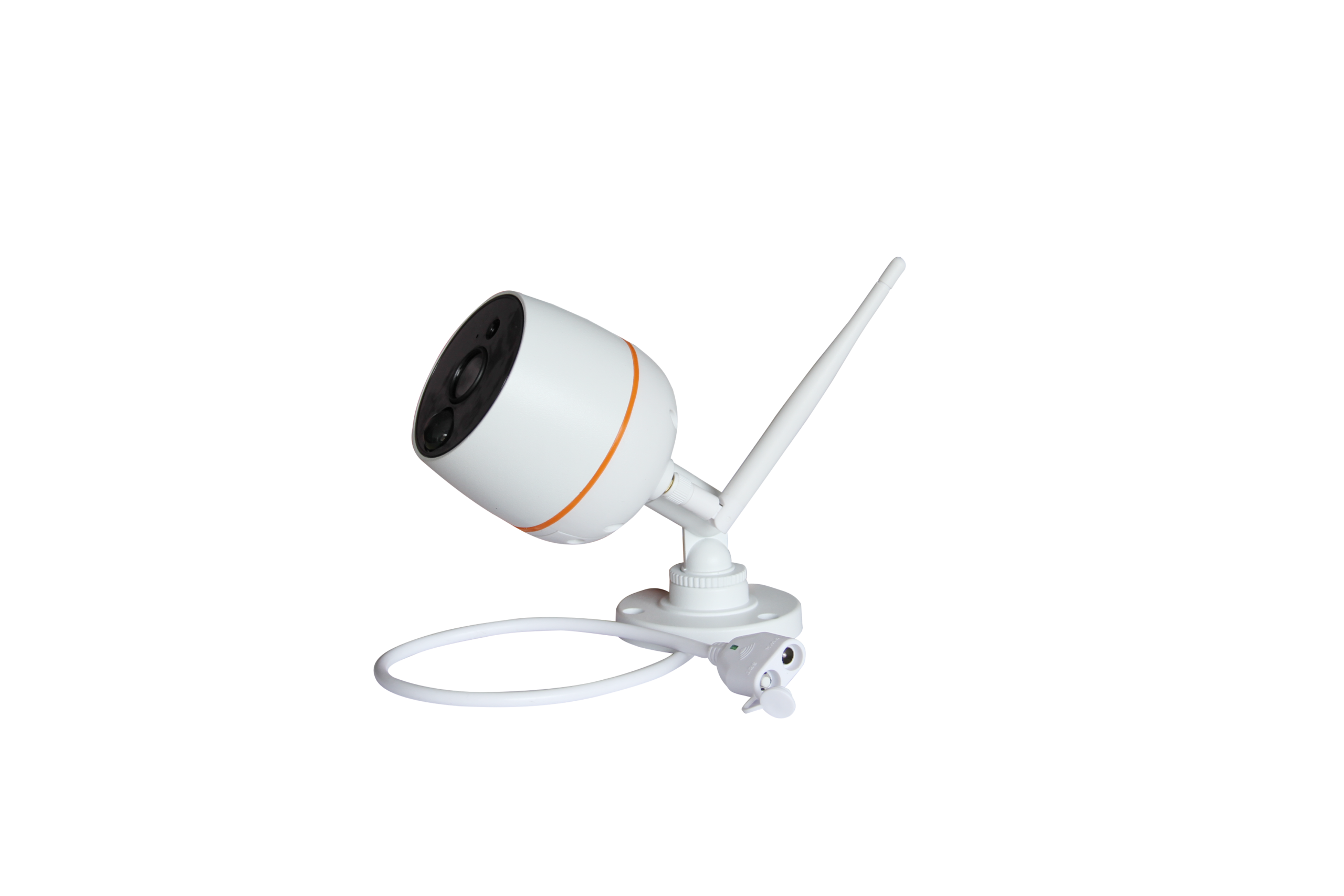

WIFI IP Camera Parameters :
Image Sensor | Image Sensor | 1/3″ CMOS |
Resolution | 1080P | |
illumination | 0Lux | |
Day&Night | IR Cut | 9 m |
Switch Mode | Auto IR-CUT | |
Video | Video Compression | H.264 |
Resolution | 1920 x 1080P,640 x 480P | |
Audio | Input&Output | Voice Talk |
Audio Compression | AAC | |
Internet | WIFI | 802.11b/g/n; |
WIFI Security Code | WEP, WPA, WPA2 | |
Indicator | Tail cables’ Indicator | Green |
Reset Button | Reset Standard | Re-Matching Code |
PIR | Support | PIR Motion Detection |
Storage | Micro SD | Support 128GB |
Others | Working Tem. | –20°C~50°C |
Working Hum. | 20%~85%; | |
Store Tem. | –20°C~50°C | |
Store Hum. | 20%~85%; |

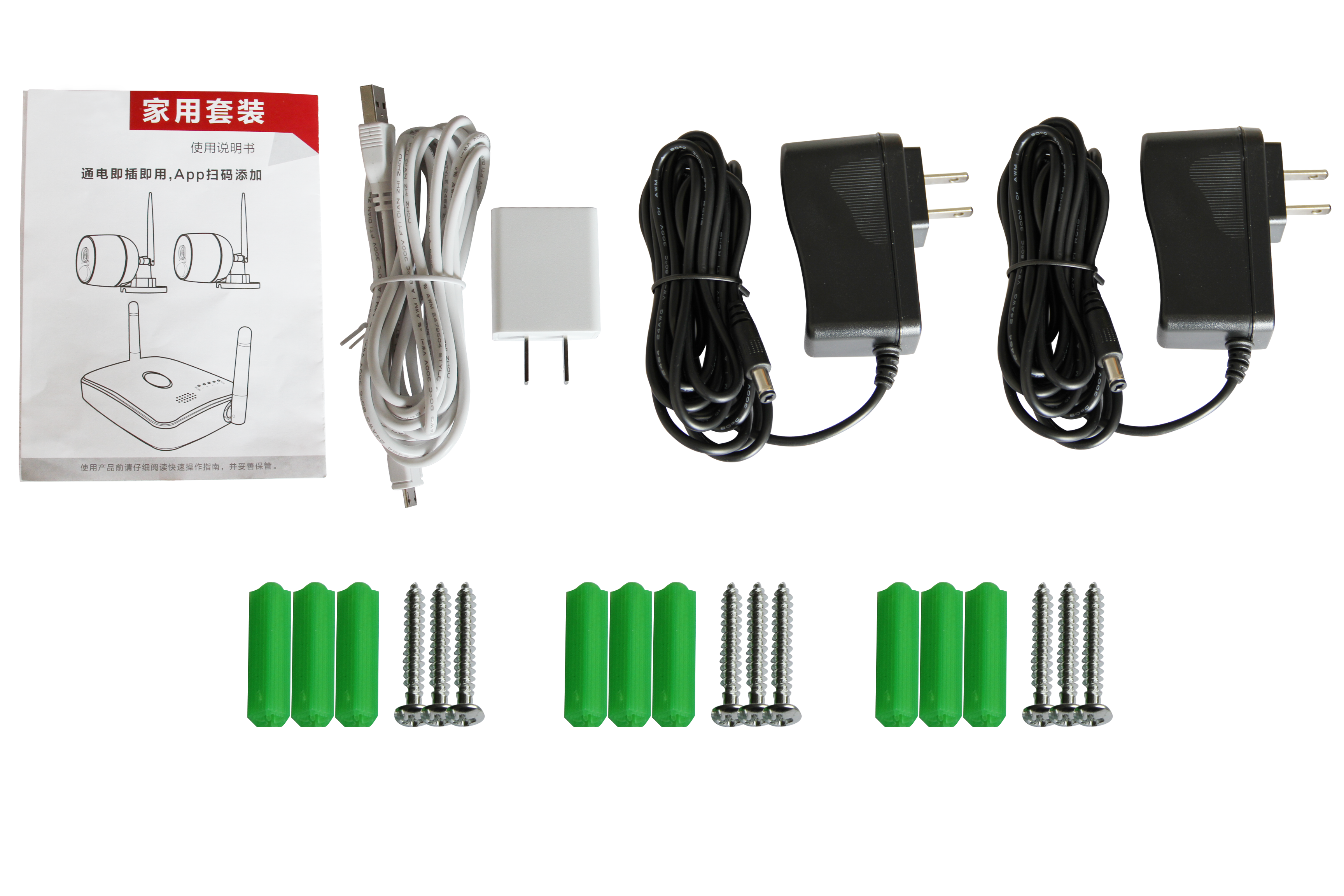

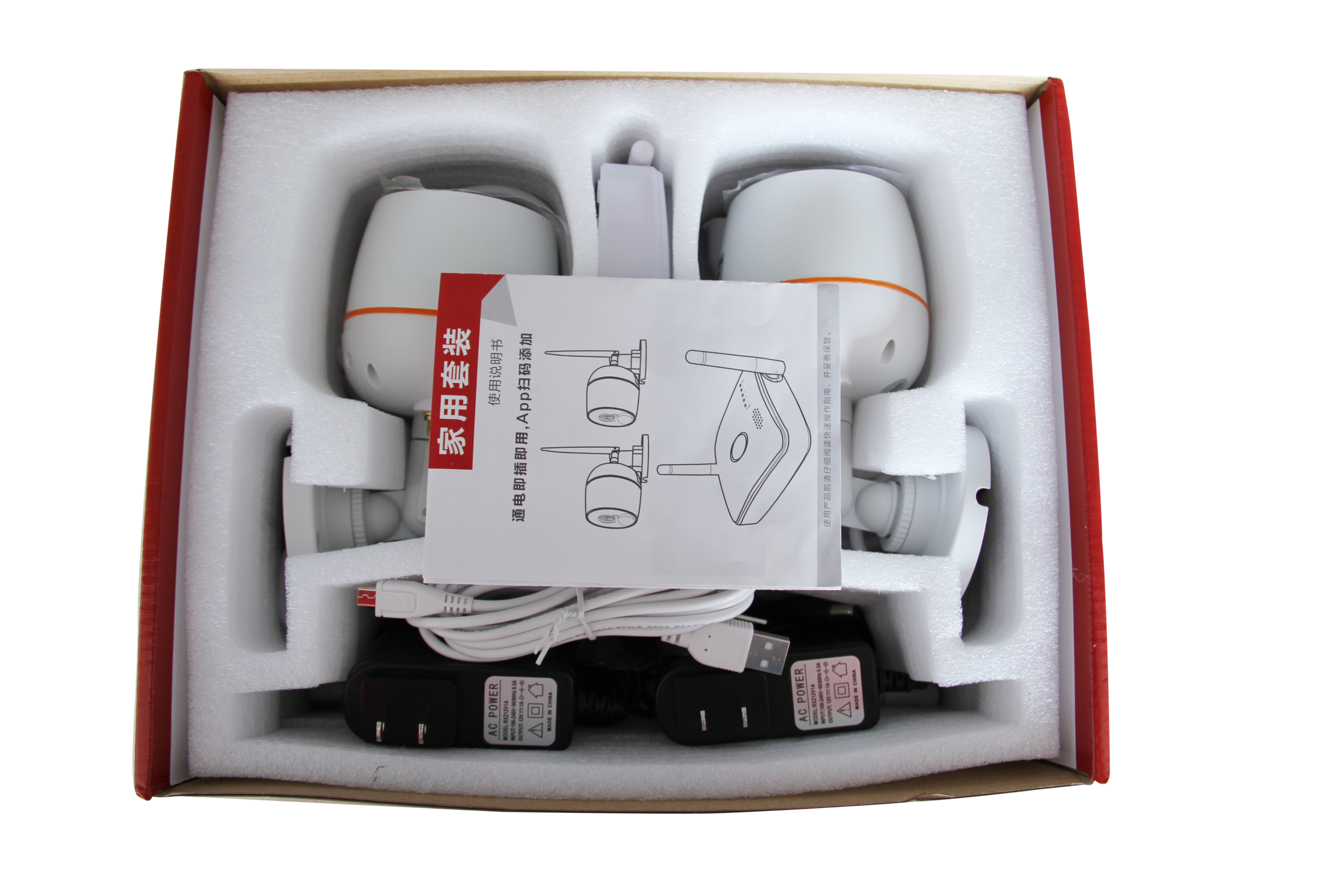

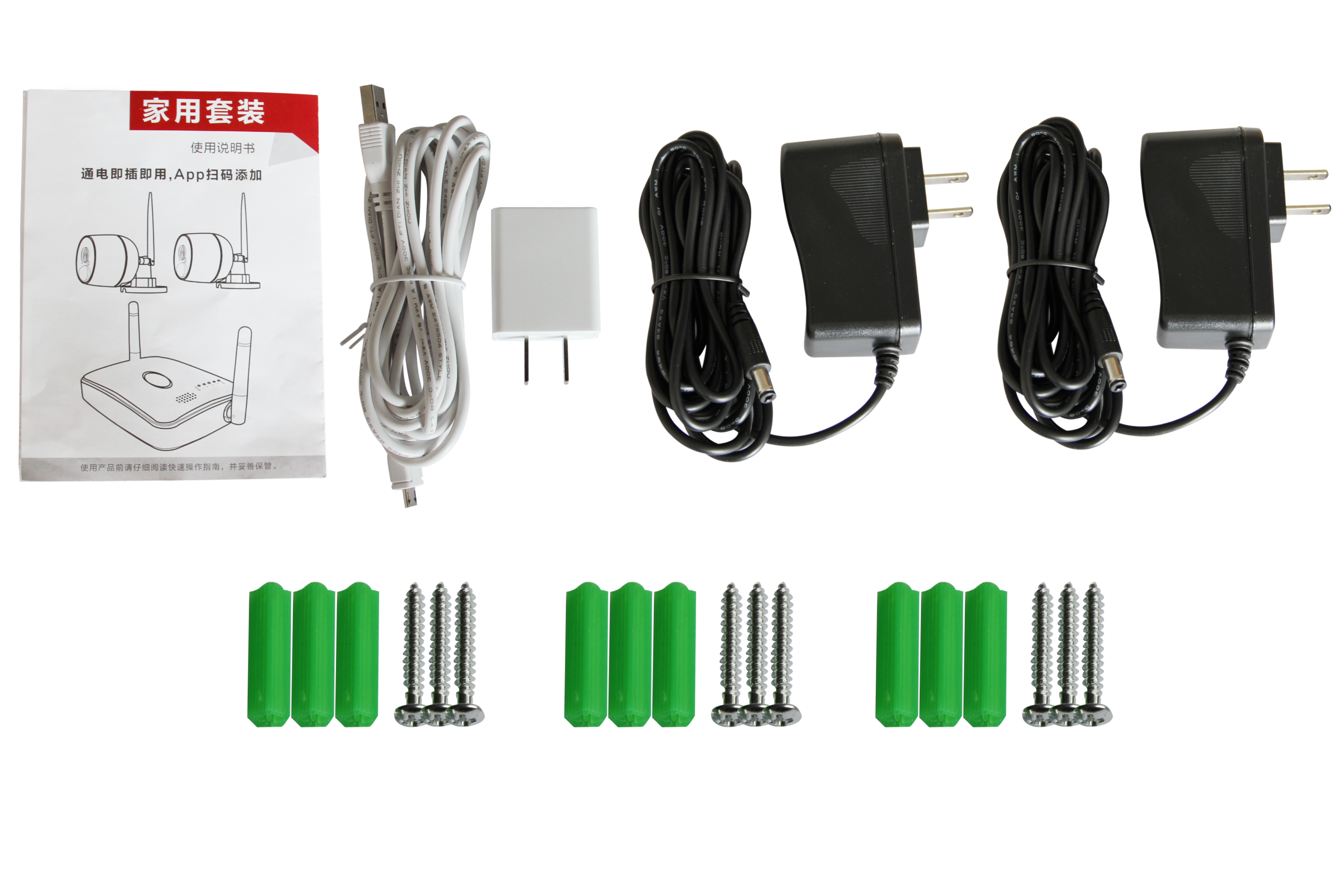

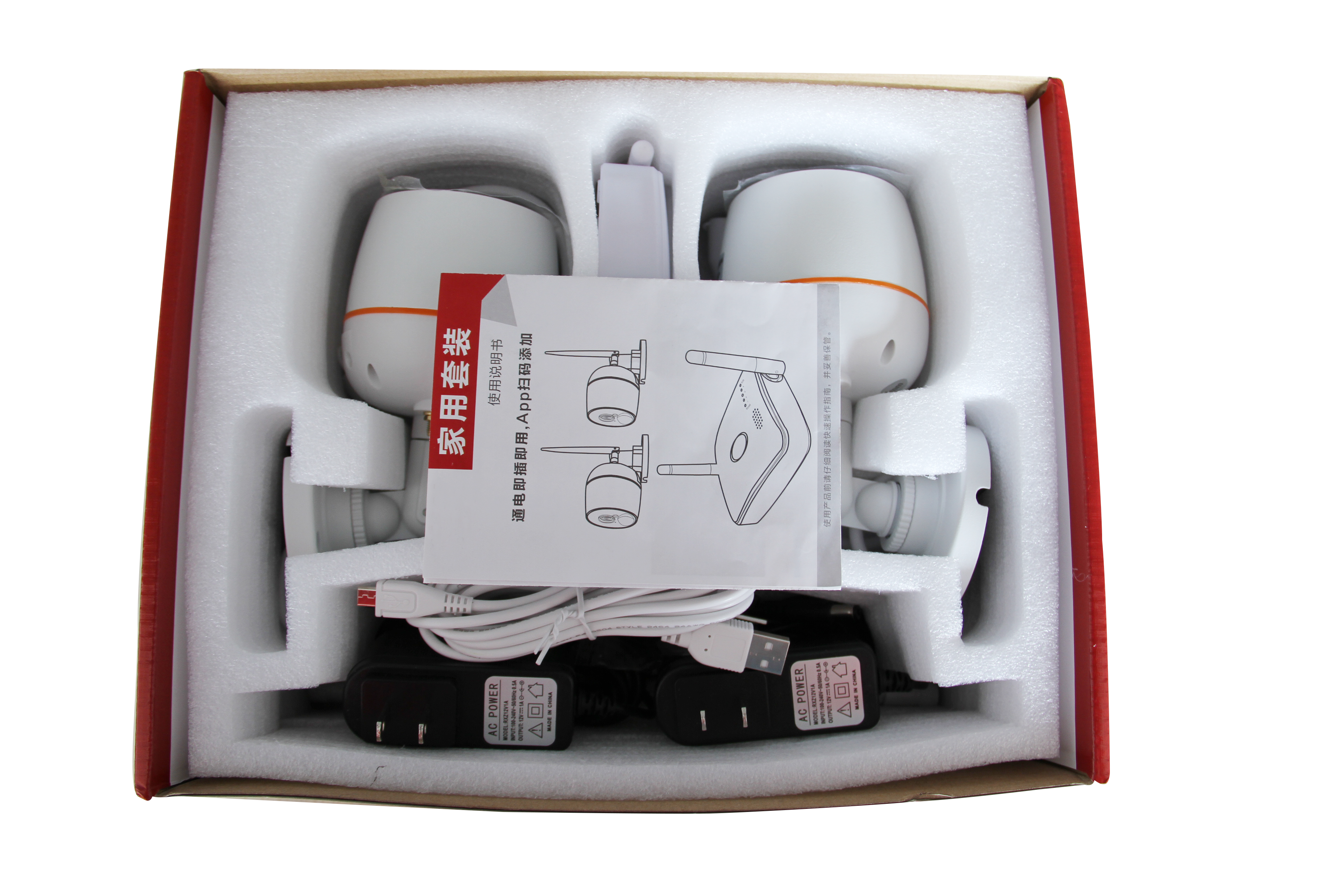

Package Details :
1*User Manual |
1*5V/2A Adapter |
2*Adapters |
3*Screw bags for IP Cameras |
1*Color Box (29cm*23cm*11cm) .Weight: 1.5kg |
